Archive for the ‘Horizontal Stabilizer’ Category

Horizontal stabilizer fairings again

Sunday, November 6th, 2022

While working on the rudder fit and the vertical stabilizer fairing, I decided to re-check the clearance between the elevators and the horizontal stabilizer tip fairings. I was surprised to find that I had inadequate clearance (less than the minimum 1/8") on the starboard side. Not sure what happened there, perhaps I had the elevator hinge bearings adjusted differently during fitting versus how they are installed now.

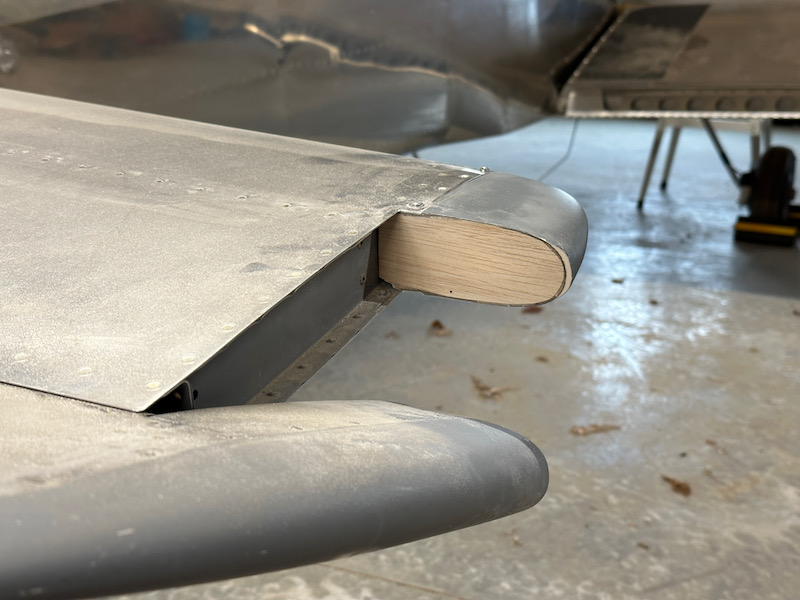

I sanded the fairing to fix the clearance issue, which resulted in me sanding right through the epoxy layer and into the balsa wood underneath. So something needed to be done about that:

I had been regretting using balsa anyway, so I carved it all out and replaced it with fiberglass just like I did with the vertical stabilizer fairing. Of course I had to do both sides so they'd be identical, otherwise I wouldn't be able to sleep at night. The process here was identical to that used for the VS fairing: popsicle stick supports, glass panel bonded with flox bead, additional glass layer on the inside. I promise it turned out nice even though this in-progress picture makes it look terrible:

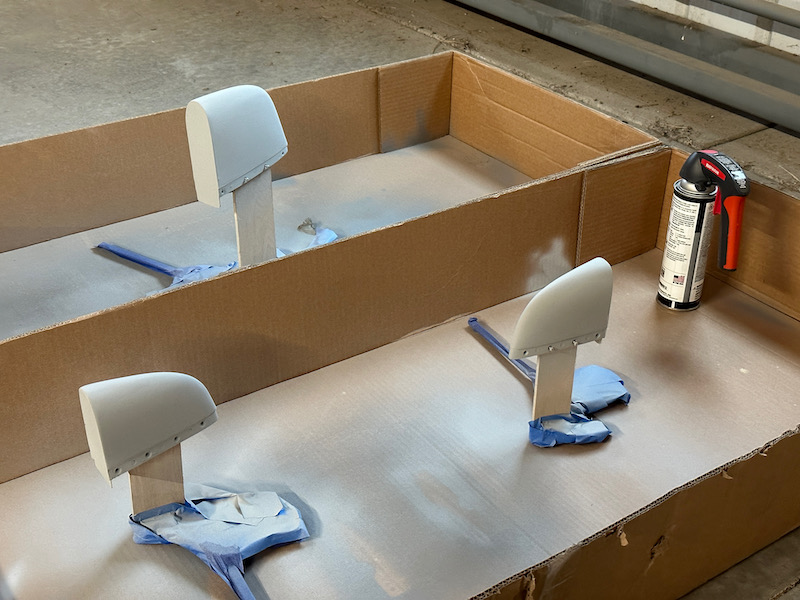

I sprayed all these fairings with several coats of SEM high-build primer, then sanded lightly with 320 grit. I like this stuff – it's expensive but it gives a decent result, and it comes in a handy spray can.

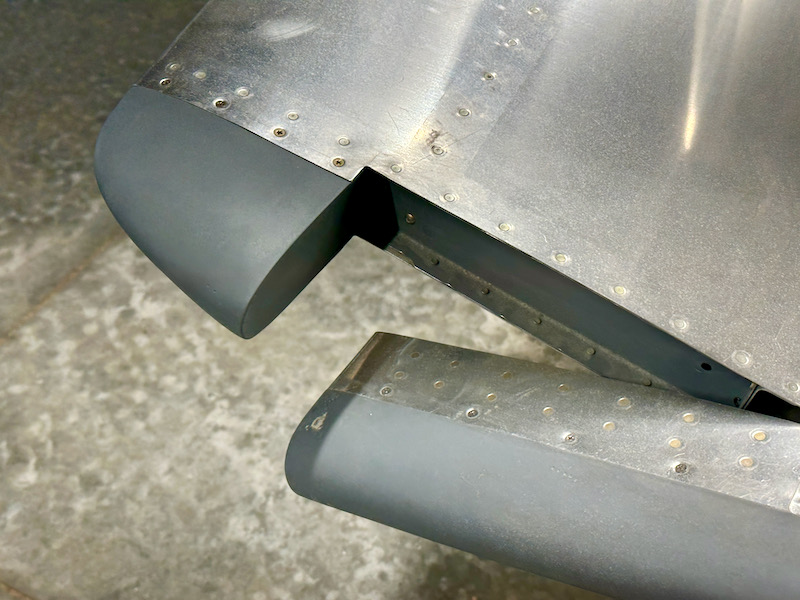

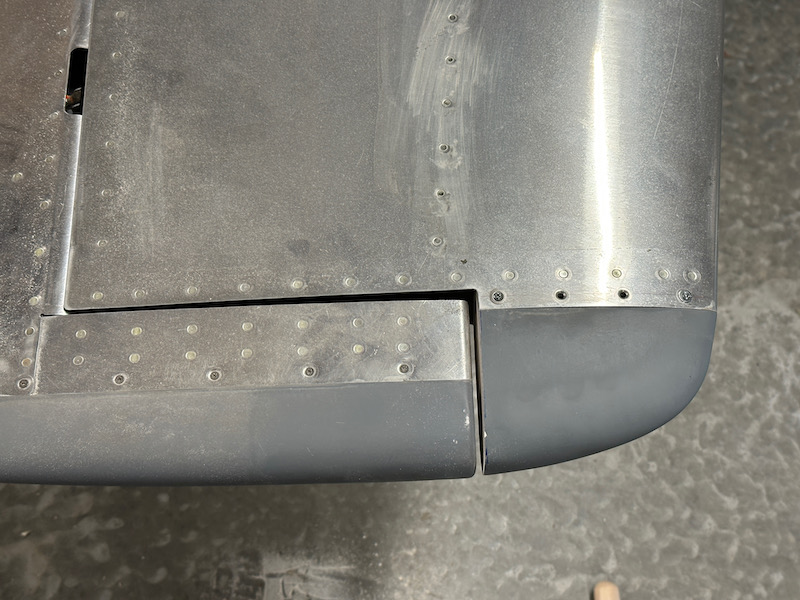

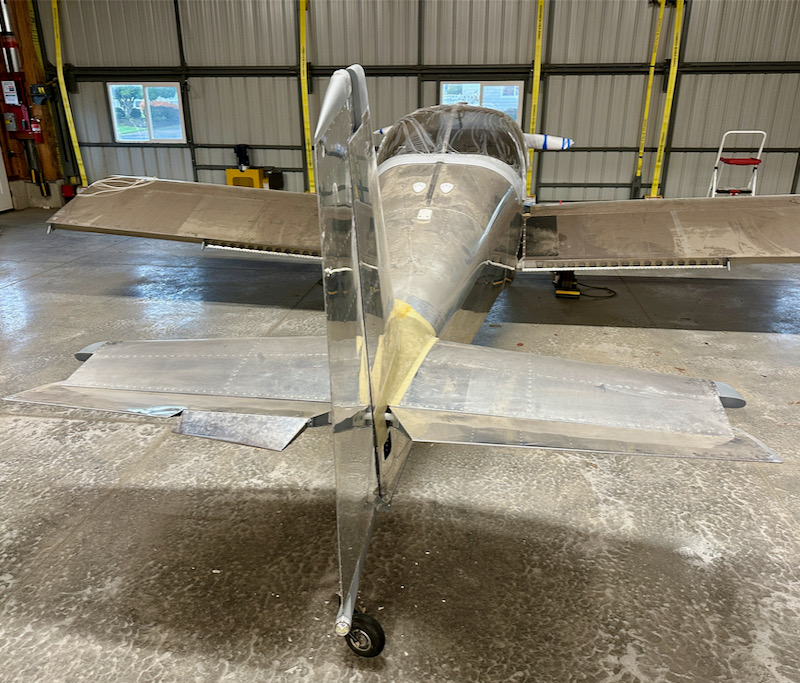

As before, I followed up with a cosmetic coat of 7220 and installed the fairings on the plane. And just as before, the results are not perfect but close enough that I'm happy for now. The pro painter will have a few pinholes to fill, but the shape is correct and the clearance problems are gone:

So now all the fairings on the tail of the airplane are technically done, although I still want to work on improving the fit of the empennage fairing. But that will have to wait for next year's fiberglass season – it's now too cold and rainy for that kind of work.

Re-attached empennage

Sunday, April 26th, 2020

Finally, some work on the airplane! First of all, after being hauled halfway across the country and then sitting in a series of dusty locations for over four years, the fuselage was absolutely filthy. Before trying to work on anything I dragged it outside and gave it a sponge bath:

Then I removed the jury-rigged arrangement of wood blocks and clamps that had been holding the vertical stabilizer in place, installed the horizontal stabilizer again, and torqued all the HS and VS mounting bolts.

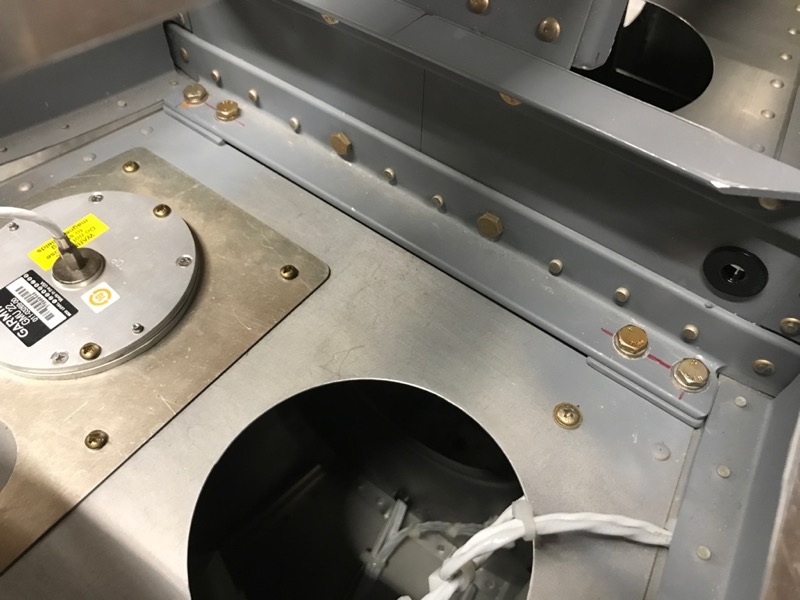

Getting access to all these fasteners to install and torque them properly is a real wrist-shredding exercise. Here's photo proof that I remembered to reinstall the F-798 shims under the leading edge of the horizontal stabilizer:

And, the single washer/spacer between the vertical stabilizer spar and the elevator stop on the left side only:

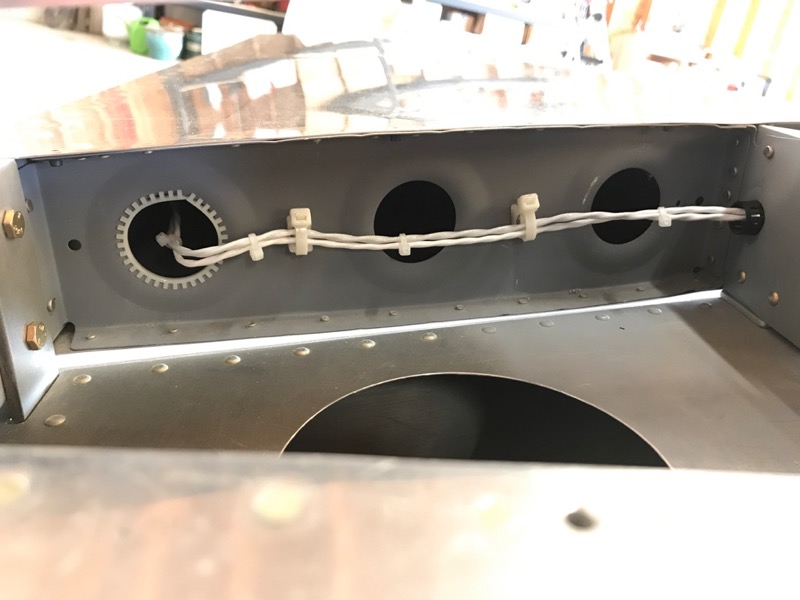

Since I never previously had room to leave the elevators attached permanently, I hadn't yet finished routing the wires to the left elevator for the trim tab motor and position sensor. Now I've tie-wrapped them to the left-side root rib of the horizontal stabilizer, and run them back to the elevator through the previously-drilled bushing hole. I added some nylon grommet edge material to the lightening hole too, which is probably not necessary but makes me feel better.

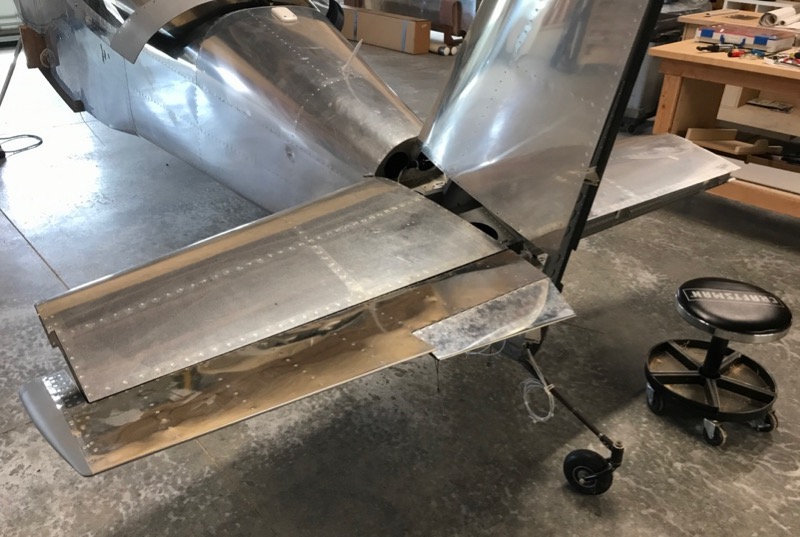

Here's the left elevator installed with the correct bolts and everything torqued:

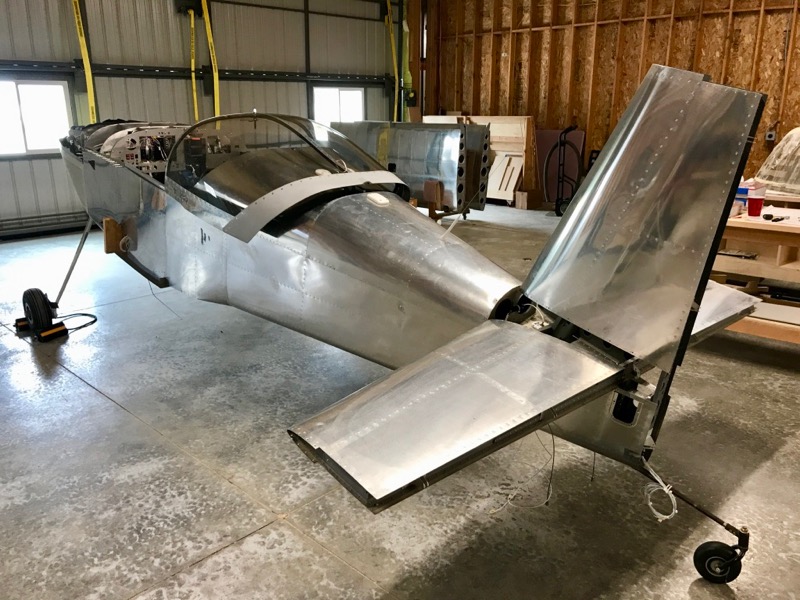

And here's the right elevator installed too. Believe it or not, it took a solid day of work to get to this point from the last photo. Properly installing the elevator pivot bolts and spacer washers is a real exercise in frustration, and you have to take your time and take great pains to get everything exactly aligned or else you'll wind up with unwanted control friction. I must have had the elevators on and off the airplane at least fifty times adjusting various things, but the result is a set of elevators that moves with very little drag.

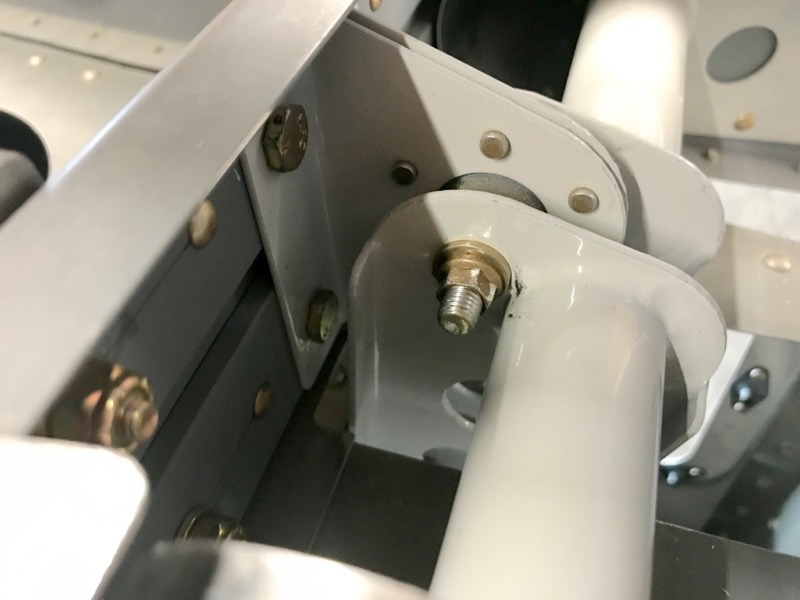

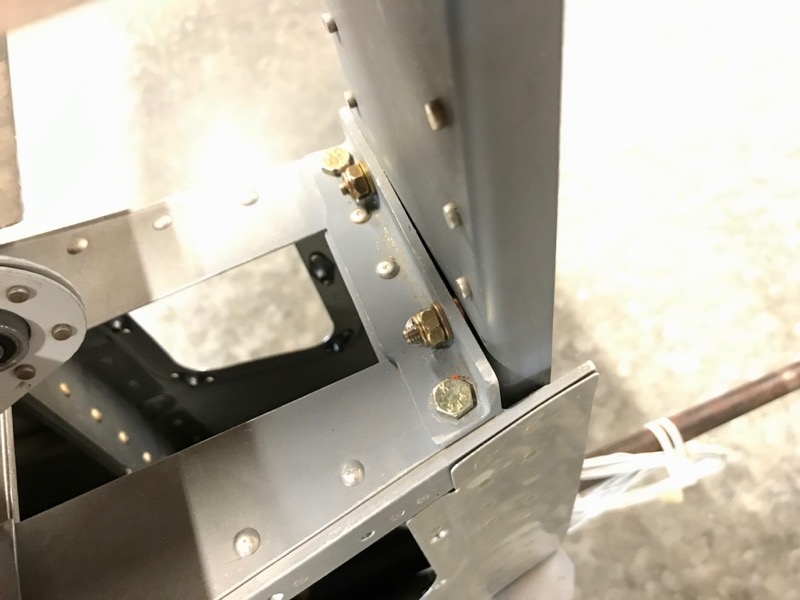

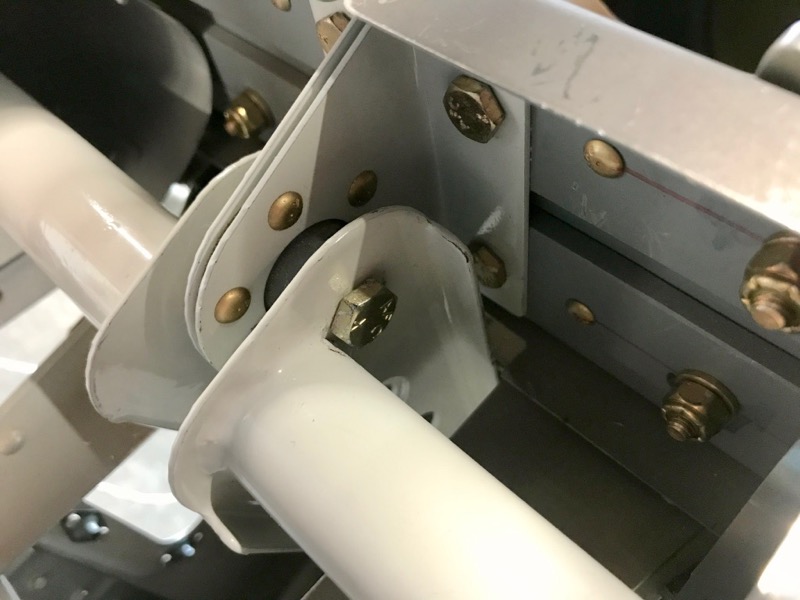

I ran into a trap I unknowingly set for myself years ago… the hole I drilled for the center elevator pivot bolt is awfully close to the torque tube, which means getting a wrench on the bolt head is almost impossible. I ended up making it work with a crow's foot wrench, but it was a close-run thing. In retrospect the plans set you up to fail here, because there's no warning about this possibility, and it's very easy to have this happen if you blindly follow the prescribed dimensions for installing the rod end bearings.

The other side was just as bad – I ended up using a MS21042 metal locknut here in place of the specified AN365, because I was able to get a socket on its smaller-diameter head. Still, it was a real fight, requiring all manner of adapters and flex couplings to make it work. I'm not worried about this fastener substitution, since the specs say you can directly substitute a MS21042 for the equivalent nyloc nut.

The plans are silent on the specifics of how to properly install the elevators, so here are some notes based on my experience:

1. If you haven't drilled the holes for the center pivot bolt yet, make sure you don't place it too close to the torque tube (or the flange, which would be just as bad).

2. Use temporary hardware when fitting the elevators, since you will have them on and off a lot. Plain nuts nuts in place of locknuts will save you a lot of time and effort. Use the proper hardware for the very final installation, obviously.

3. First install one elevator only. Insert the center pivot bolt, but don't worry about the spacers between the control horn and center bearing yet. With the center bolt in place, you want the elevator to be light as a feather, with essentially no resistance. If it binds or drags at this point, you have an alignment problem and you need to adjust one or both rod end bearings. Repeat until the elevator pivots freely.

4. Tighten the nuts on the middle and outer pivot bolts and check for freedom of movement. If the elevator was friction-free after step #3 but starts binding now, one of your rod end bearings is side-loaded. It only takes a small amount of preload in the direction of the bolt axis for the bearings to experience a lot of drag. I had this problem on one side and had to tweak the angle of a couple of the HS-413 brackets slightly. Repeat until the elevator pivots freely with the middle and outer bolts tightened.

5. Now work on the spacer washers between the center bearing and the elevator control horn. You can use washer wrenches to insert washers into the stack, but I found it easier to remove the elevator and just stack the desired number of washers onto the center bolt. When reinstalling the elevator you can carefully slip the control horn over the bolt without dropping the washers. Your goal here is to fill up the space between the center bearing and control horn with whatever combination of -10 and -10L washers will fill the gap exactly, without making it so thick that it side-loads the rod end bearings (and don't forget the 5702 washers shown in the plans!). I found it helpful to mic the thickness of a stack of washers before installing. Also remember that a -10 washer is not exactly twice the thickness of a -10L, so you can substitute two thin ones for a thick one and end up with a slightly different measurement. Repeat until you think the gap is filled and the elevator is free to move, which indicates that your stackup of washers is probably not too thick.

6. Temporarily use either a bunch of extra washers or a shorter bolt in the center bearing so you can tighten it down and test how your spacers work when the bolt is tight. If it starts dragging at that point, your stack of washers is not thick enough, and the bolt is pulling the elevator towards the center.

7. Once you're satisfied with the first elevator, repeat steps 3-6 for the other elevator.

8. Install the final hardware and torque everything properly – remember to clamp the counterweight arms in trail with the elevator tips first.

And after all that, if the elevator doesn't move like you want it, start over and keep at it until it works right. Now you see why this took me all day…

Installed empennage gap fairings and horizontal stabilizer

Saturday, March 24th, 2007

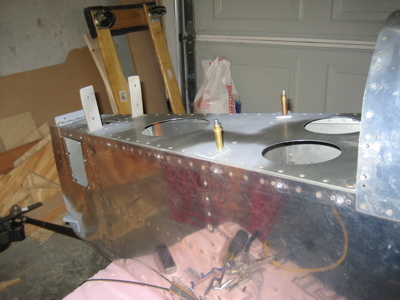

The plans call for you to install nutplates along the F-709 bulkhead where the fiberglass empennage fairing and the forward end of the aluminum empennage gap fairings will attach, and then drill and tap holes in the longeron underneath the stabilizer to attach the gap fairings along the rest of their length. I decided to install nutplates everywhere instead of tapping the longeron – a tapped hole has no ability retain a screw and I remembered how one or two of these screws were always backing out on my old airplane.

Installing nutplates here took only a few extra minutes and was no big deal to accomplish. I did check with Van's before I did this, since I was wondering if the extra rivet holes would do anything structurally back there. Here's what they said:

Date: Tue, 12 Dec 2006 07:38:14 -0800
From: Van's
To: Matt
Subject: Re: Nutplates for empennage fairing

It's OK, but why would you want the extra expense and work?

Vans

I think they must have an automated process that sends that reply anytime they receive an email that starts with "Is it okay if I…"

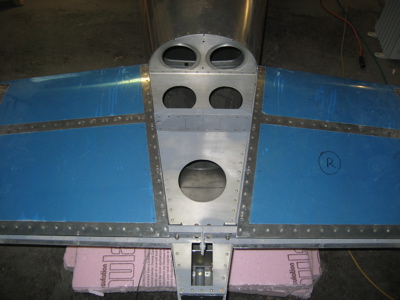

After double checking my todo list to make sure I wasn't forgetting anything, I vacuumed out the tailcone one last time and bolted the horizontal stabilizer on for good.

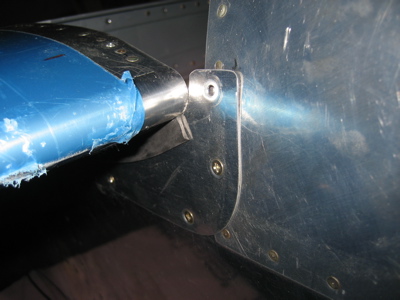

Here is one of the empennage gap fairings installed. The topmost hole is left open because it's shared with the fiberglass empennage fairing. I used the hand seamer to get the forward edges of these fairings to lay down nicely on the fuselage skin. I'm not sure what to do about the forward end of the rubber channel – maybe I'll trim it at an angle to try and help keep the wind from peeling it up.

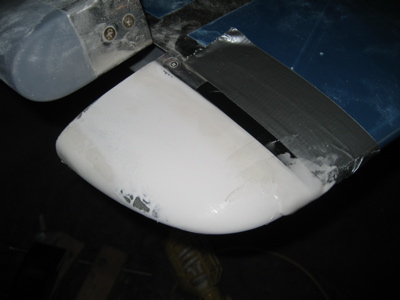

Before turning in I reattached one of the horizontal stabilizer tips and put on another coat of filler to help smooth out the forward edge where the fiberglass and alunimum come together.

Empennage fairings part VII

Sunday, March 11th, 2007

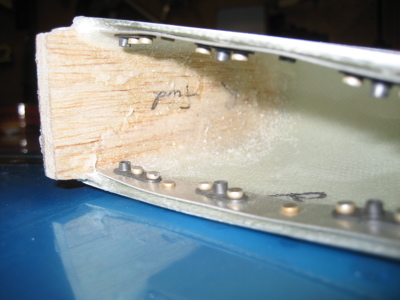

Still not too much time to work on the project lately. I did have a chance to reinforce the balsa ribs on the horizontal stabilizer tip fairings with a mixture of epoxy and flox, and to fit and install the 4-40 nutplates that will hold the fairings on.

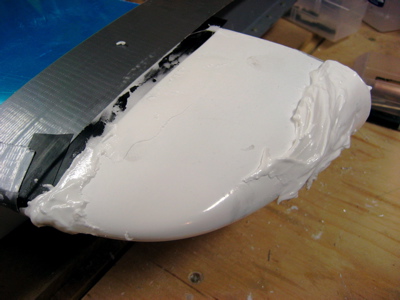

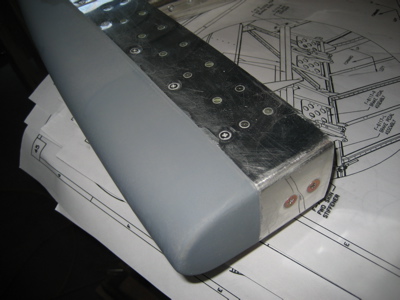

I mixed up the usual batch of micro filler and smoothed out the transition between the tip fairings and the stabilizer, with an extra blob at the nose to allow a perfect fit after it's all sanded down later. I also put a big glob of filler on the outboard corners – a lot of this will get sanded off, but what remains will be the the first step of building up the tip fairings to match the contour of the elevator tips.

Empennage fairings part VI

Sunday, March 4th, 2007

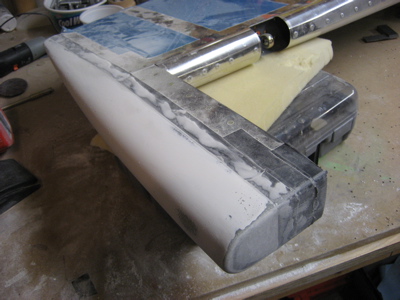

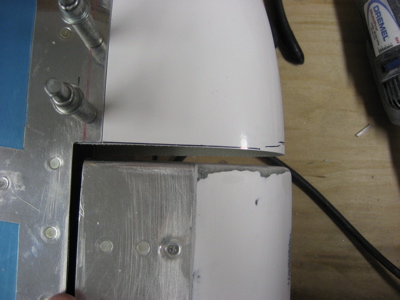

I was either in class or studying for half the weekend, but I got a little bit done on the empennage fairings. I ground down the elevator tip fairings until I got the shape pretty much how I wanted it – they turned out not bad at all. I sanded them down to 320 grit once I got the shape right.

This is why I hate working with fiberglass – dust everywhere.

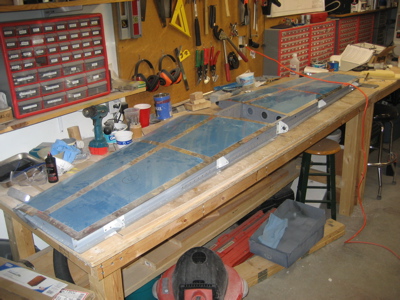

I removed the horizontal stabilizer from the airplane and laid it out on the bench to receive its fairings.

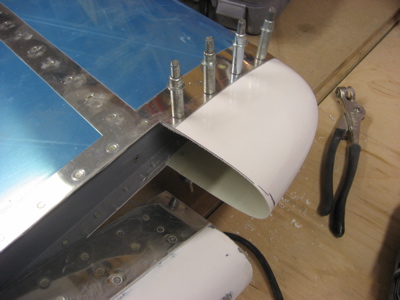

Trimmed the stabilizer tip fairings to fit and drilled and clecoed them in place:

The plans call for a minimum gap of 1/8" between the elevator counterweight and the fairing – mine is more like 3/16" in the neutral position, or slightly less when the elevator moves through its range of travel. Good enough. I did open up the other side a bit so the gap would be even on both sides of the stabilizer.

You can also see where I'll need to build up the outboard part of the stabilizer fairing to match the contour of the elevator.

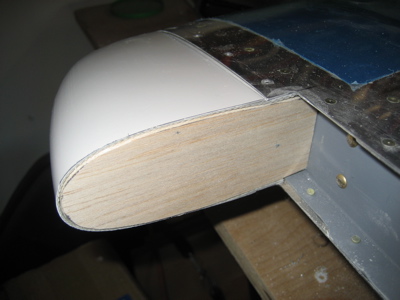

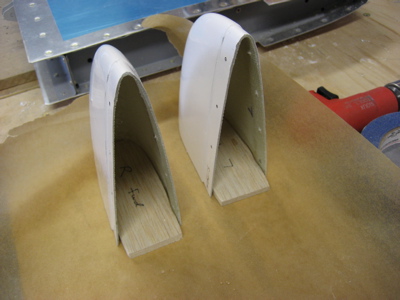

I made some ribs for the stabilizer tips out of 3/16" balsa sheet. This reminded me a lot of how I used to build model airplanes as a kid. Actually balsa is really nice to work with. Maybe I'll take up model building again someday… nah.

I epoxied the ribs into the fairings and left them to dry overnight.

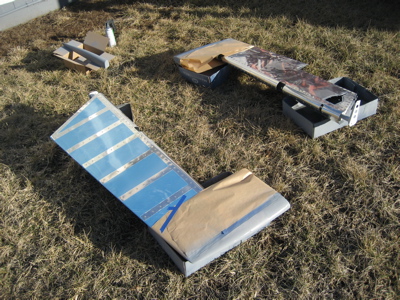

Since it was fairly nice outside, I decided to mask off the elevator tips and shoot a coat of primer. This will help me find the low spots and imperfections.

Not too bad. I got the look I was going for, and they turned out pretty nice. I will probably come back and do some more filling and sanding in order to work out a few minor imperfections, but overall I'm pleased.

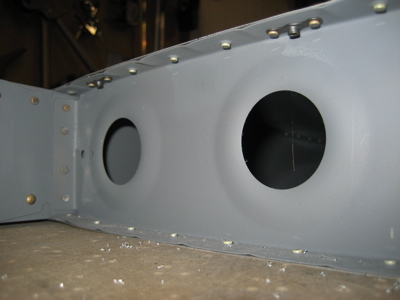

Before I turned in, I managed to get the tail fairing nutplates riveted to the stabilizer.

All this work on fiberglass fairings, and this guy made his out of aluminum. I can't even comprehend the amount of skill that takes.
